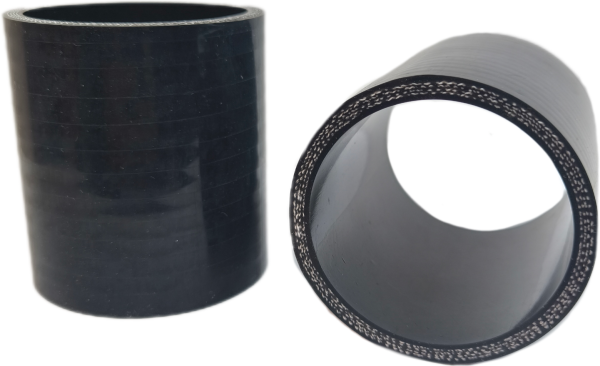

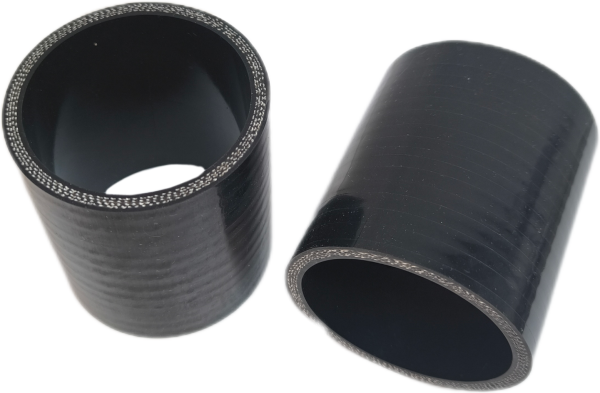

Silicone hose connector connection air filter box e.g. f. Mikuni TM35-1 or TM38 carburettor (62/62mm)

Mikuni carburettor TM35-1

The carburettors are often used for a conversion of the Yamaha Banshee or RD350.

The offer includes:
2x carburettor TM35-1
(jetting and needle of your choice (standard jetting if not specified))

The offer also includes:
Jetting of your choice (standard jetting if no details are given)
A different nozzle needle (if required) (standard if no details are provided.

Normally, the nozzles and the nozzle needle are replaced. All we need is your setup. Simply contact us or make a note during the ordering process.

Mikuni carburettor TM38-157

The carburettors are often used for a conversion of the Yamaha Banshee or RD350.

The carburettors have an additional Powerjet jet so that the mixture can be adjusted even better.

The offer includes:
2x carburettor TM38-157
(jetting of your choice (standard jetting if not specified))

Technical details:

Main jet = 410
Idle jet = 20
Jet needle = 6EJ12-56-3
Power Jet nozzle = 50

Outer diameter front = 44mm
Outer diameter rear = 62mm
Total length = 76mm

Important notes:
Other intake manifolds are required! No plug & play!

Conversion must be approved by the TÜV

Suitable for:
Yamaha Banshee
Yamaha RD 350 31k, YPVS, 1WW, 1WX, 4L0, 4L1 etc.

MADE IN GERMANY

PR intake manifolds for the Yamaha Banshee or RD 350 for use with Mikuni TM35-1 carburetors


The offer includes:
2x intake manifolds incl. Mikuni flange rubber
8x screws incl. washers

Optional:
2x gasket diaphragm inlet standard
2x gasket diaphragm inlet for V-Force 4

Mikuni carburettor TM35-1

The carburettors are often used for a conversion of the Yamaha Banshee or RD350.

The offer includes:
2x carburettor TM35-1
(jetting and needle of your choice (standard jetting if not specified))

The offer also includes:
Jetting of your choice (standard jetting if no details are given)
A different nozzle needle (if required) (standard if no details are provided.

Normally, the nozzles and the nozzle needle are replaced. All we need is your setup. Simply contact us or make a note during the ordering process.

Mikuni carburettor TM35-1

The carburettor is also often used for conversion on other mopeds and scooters, such as Vespa, Aprilia RS, Suzuki RGV, Yamaha TZR etc.

The offer includes:
1x carburettor TM35-1

The offer also includes:
Jetting of your choice (standard jetting if not specified)
A different jet needle (if required) (standard if no details are given).

Technical details:

Main jet = 350
Idle jet = 20
Nozzle needle = 6EN11-53-3

Outer diameter front = 40mm
Outer diameter rear = 62mm
Total length = 74mm

Important notes:
Other intake manifolds are required! No plug & play!

Conversion must be approved by the TÜV

Suitable for:
All two-stroke vehicles where it fits or can be made to fit! :)

MADE IN GERMANY

PR intake manifolds for the Yamaha Banshee or RD 350 for use with Mikuni TM38-157 Powerjet carburetors


The offer includes:
2x intake manifolds incl. Mikuni flange rubber
8x screws incl. washers

Optional:
2x gasket diaphragm inlet standard
2x gasket diaphragm inlet for V-Force 4

Mikuni carburettor TM38-157

The carburettors are often used for a conversion of the Yamaha Banshee or RD350.

The carburettors have an additional Powerjet jet so that the mixture can be adjusted even better.

The offer includes:
2x carburettor TM38-157
(jetting of your choice (standard jetting if not specified))

Technical details:

Main jet = 410
Idle jet = 20
Jet needle = 6EJ12-56-3
Power Jet nozzle = 50

Outer diameter front = 44mm
Outer diameter rear = 62mm
Total length = 76mm

Important notes:
Other intake manifolds are required! No plug & play!

Conversion must be approved by the TÜV

Suitable for:
Yamaha Banshee
Yamaha RD 350 31k, YPVS, 1WW, 1WX, 4L0, 4L1 etc.

Mikuni TM35-1 90° outlet for throttle cable

Includes:
1x 90° outlet
1x adjusting screw
1x dust cap

Cylindrical roller bearing TZ Style Bearing reinforced version C3 bearing clearance with ring groove Crankshaft bearing (25x62x17mm)

Includes:
1x cylindrical roller bearing
1x cylindrical roller bearing inner part

Info:
This bearing is a must-have for all those who drive a larger engine or who are travelling on the race track. It relieves the bearing seat in the crankcase and lasts longer.
If possible, the bearing should only be used with a straight-toothed primary drive.

Compatibility:
Can be used with all standard crankshafts. Whether original or +4, +7, +10 etc.
Remove the old bearing and fit the new one.

Installation position:
Right (directly on the primary drive)

Suitable for:
Yamaha Banshee all years of construction
Yamaha RD 350 31K, YPVS, 1WW, 1WX

Gasket for the water connection on the cylinder head

Suitable for:
Yamaha Banshee (all)
Also suitable for the Athena cylinder head
