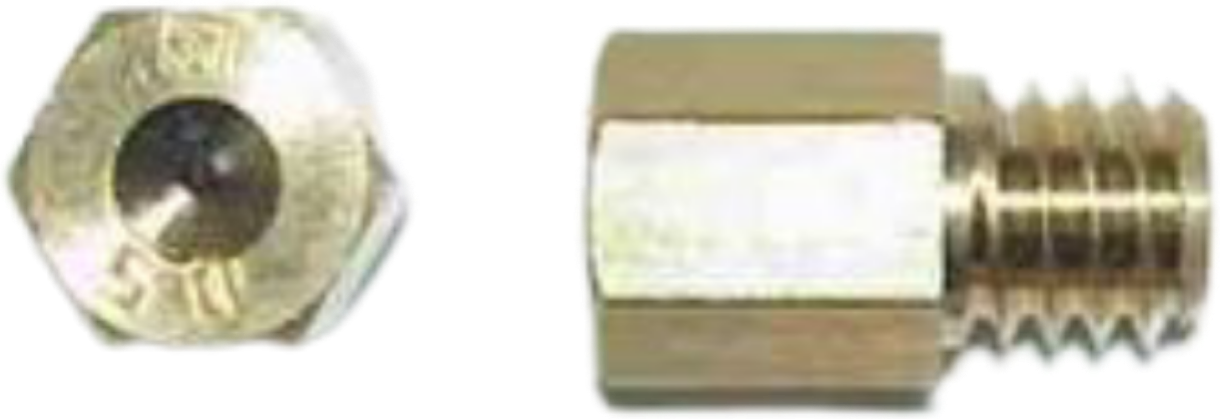

Mikuni carburettor main jet hexagonal 4/042#Size for Mikuni VM carburettor Mikuni TM carburettor Mikuni TMX carburettor

Mikuni carburettor TM30-6

The carburettors are often used for a conversion of the Yamaha Banshee or RD350. They fit tightly into the original intake rubber.

The carburettors have an additional Powerjet jet so that the mixture can be adjusted even better.

The offer includes:
2x carburettor TM30-6
(jetting of your choice (standard jetting if not specified))

Technical data:
Main Jet = 195
Idle Jet = 40
Needle = 5EL68-3
Power Jet = 80

Notes:
To make the carburettor fit more snugly, we recommend fitting a spacer between the diaphragm and cylinder. Otherwise it will be a little tight on the engine housing.

Conversion must be approved by the TÜV

Optional oil connection:
Also available with oil connection! (The carburettors then have an oil connection with integrated non-return valve)

Suitable for:
Yamaha Banshee
Yamaha RD 350 31k, YPVS, 1WW, 1WX, 4L0, 4L1 etc.

Mikuni carburettor TM35-1

The carburettor is also often used for conversion on other mopeds and scooters, such as Vespa, Aprilia RS, Suzuki RGV, Yamaha TZR etc.

The offer includes:
1x carburettor TM35-1

The offer also includes:
Jetting of your choice (standard jetting if not specified)
A different jet needle (if required) (standard if no details are given).

Technical details:

Main jet = 350
Idle jet = 20
Nozzle needle = 6EN11-53-3

Outer diameter front = 40mm
Outer diameter rear = 62mm
Total length = 74mm

Important notes:
Other intake manifolds are required! No plug & play!

Conversion must be approved by the TÜV

Suitable for:
All two-stroke vehicles where it fits or can be made to fit! :)

Mikuni carburettor TM35-1

The carburettors are often used for a conversion of the Yamaha Banshee or RD350.

The offer includes:
2x carburettor TM35-1
(jetting and needle of your choice (standard jetting if not specified))

The offer also includes:
Jetting of your choice (standard jetting if no details are given)
A different nozzle needle (if required) (standard if no details are provided.

Normally, the nozzles and the nozzle needle are replaced. All we need is your setup. Simply contact us or make a note during the ordering process.

Mikuni carburettor TM38-157

The carburettors are often used for a conversion of the Yamaha Banshee or RD350.

The carburettors have an additional Powerjet jet so that the mixture can be adjusted even better.

The offer includes:
2x carburettor TM38-157
(jetting of your choice (standard jetting if not specified))

Technical details:

Main jet = 410
Idle jet = 20
Jet needle = 6EJ12-56-3
Power Jet nozzle = 50

Outer diameter front = 44mm
Outer diameter rear = 62mm
Total length = 76mm

Important notes:
Other intake manifolds are required! No plug & play!

Conversion must be approved by the TÜV

Suitable for:
Yamaha Banshee
Yamaha RD 350 31k, YPVS, 1WW, 1WX, 4L0, 4L1 etc.

Rubber plug water plug gasket Yamaha Banshee cylinder bottom 47X-11355-00-00

Contains:
1x rubber seal (plug)

Info:
For original or Athena cylinder

Suitable for:
Yamaha Banshee all years of construction


Silicone hose connector for connecting a Mikuni TM30 carburettor to the original air filter box

Includes:
2x silicone hose reducer

Dimensions:
51mm carburettor connection
62mm air filter connection

Suitable for:
Yamaha Banshee all years

Mikuni carburettor TM30-6

The carburettors are often used for a conversion of the Yamaha Banshee or RD350. They fit tightly into the original intake rubber.

The carburettors have an additional Powerjet jet so that the mixture can be adjusted even better.

The offer includes:
2x carburettor TM30-6
(jetting of your choice (standard jetting if not specified))

Technical data:
Main Jet = 195
Idle Jet = 40
Needle = 5EL68-3
Power Jet = 80

Notes:
To make the carburettor fit more snugly, we recommend fitting a spacer between the diaphragm and cylinder. Otherwise it will be a little tight on the engine housing.

Conversion must be approved by the TÜV

Optional oil connection:
Also available with oil connection! (The carburettors then have an oil connection with integrated non-return valve)

Suitable for:
Yamaha Banshee
Yamaha RD 350 31k, YPVS, 1WW, 1WX, 4L0, 4L1 etc.
