Motor parts

Motor_Banshee_RD

Motor parts for Yamaha Banshee

2GU-15620-01-00
TOP
-18%
Kickstarter complete Yamaha Banshee or RD 350 2GU-15620-01-00
Kickstarter complete Yamaha Banshee or RD 350 2GU-15620-01-00

Includes:
1x complete kick starter lever

Info:
Not an original part!

Suitable for:
Yamaha Banshee all years
Yamaha RD 350 31K, YPVS, 1WW, 1WX, 4L0, 4L1

Only 89,00 EUR
89,00 EUR per Pcs
incl. 19% tax excl. Shipping costs
31K-16150-10-00
TOP
Clutch basket Chariot Yamaha Banshee and RD 350 set with shock absorber and counter plate 31K-16150-10-00 / 31K-16150-11-00
Clutch basket Chariot Yamaha Banshee and RD 350 set with shock absorber and counter plate 31K-16150-10-00 / 31K-16150-11-00

Includes:
1x complete clutch basket
8x shock absorber
4x screw
1x counter plate (primary drive attachment)

Info:
  • Not an original part but equivalent or better
  • Can be driven with the original primary drive
  • Can be driven with a straight-toothed primary drive
  • Up to 8 discs can be used (original 7 discs)
  • Kick starter gear with bearing must be taken over from the original clutch basket

Suitable for:
Yamaha Banshee all years of construction
Yamaha RD 350 31K, YPVS, 1WW, 1WX, 4L0, 4L1
329,00 EUR
329,00 EUR per Pcs
incl. 19% tax excl. Shipping costs
Modquad_Lockup
TOP
Modquad LockUp for Yamaha Banshee RD 350 centrifugal clutch
Modquad LockUp for Yamaha Banshee RD 350 centrifugal clutch

Includes:
1x complete LockUp with weights
6x screw

Info:
A Lockup is a great part for customised engines. Thanks to the centrifugal force weights, it counteracts clutch slipping, which often occurs with engines over 70hp.

Important note:
A different clutch cover is absolutely necessary for the LockUp or the existing cover must be modified, as it builds up too far and otherwise rests against the cover.

Suitable for:
Yamaha Banshee all years of construction
Yamaha RD 350 31K, YPVS, 1WW, 1WX
149,00 EUR
149,00 EUR per Pcs
incl. 19% tax excl. Shipping costs
O-Ring-Kit_Zylinderkopf_Coolhead_Noss_ProDesign

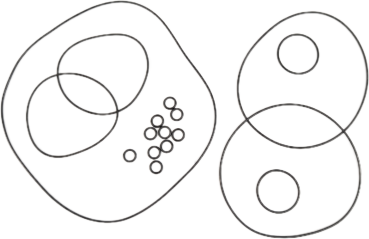

Complete O-ring set for Pro Design, Noss, Chariot, Mattoon, Vito's and also fits some other coolheads
Complete O-ring set for Pro Design, Noss, Chariot, Mattoon, Vito's and also fits some other coolheads

Includes:
1x O-ring cylinder head water channel top
2x O-ring water channel bottom left/right
2x O-ring dome top
2x O-ring combustion chamber
10x O-ring cylinder bolts

Info:
Suitable for all common coolheads (not suitable for Athena cylinder head)
Contains high-quality Viton O-rings, no cheap China O-rings

Suitable for:
Yamaha Banshee all years of construction
39,00 EUR
39,00 EUR per Pcs
incl. 19% tax excl. Shipping costs
Cheetah_Gasket
Cylinder base gasket Cheetah Serval Cub 392, 421, 465 Monoblock Yamaha Banshee RD 350 0.012", 0.015", 0.020", 0.030"
Cylinder base gasket Cheetah Serval Cub 392, 421, 465 Monoblock Yamaha Banshee RD 350

Includes:
1x foot gasket for monoblock cylinder

Info:
Suitable for all Cheetah monoblock cylinders up to 68mm

Suitable for:
Yamaha Banshee with Cheetah monoblock cylinder all years of construction
19,00 EUR
19,00 EUR per Pcs
incl. 19% tax excl. Shipping costs
BANCLCVRLOGOBLACK

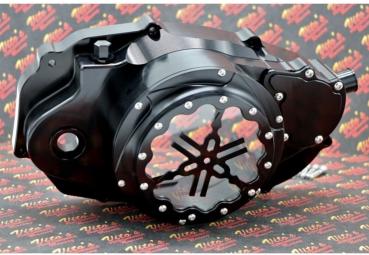

Clutch cover Lock Up side cover Lockup cover Vitos Lockup clutch cover black with logo
Lockup clutch cover Vitos lockup clutch cover black with logo

Includes:
1x complete clutch cover
1x Cover in Logo Design

Info:
Lock-up side cover (clutch cover) for Banshee/RD engines: ensures the necessary clearance for lock-up clutches, reliably protects the clutch area and allows quick access for servicing and tuning. Robust design, precise fit – ideal for powerful setups in sports and racing applications.

Suitable for:
Yamaha Banshee all years
Yamaha RD 350 31K, YPVS, 1WW, 1WX

499,00 EUR
499,00 EUR per Pcs
incl. 19% tax excl. Shipping costs
Straight_Cut_Gear_Banshee
TOP
Primary drive straight cut - Straight Cut Gear Liberty Gears USA for Yamaha Banshee and RD 350
Primary drive with straight teeth (original helical teeth)

Includes:
1x clutch basket gear
1x crankshaft gear

Info:
The gears have hardened teeth. There are also some primary drives on the market that are unfortunately of poor quality.
Usually for engines over 70hp and a sensible relief for the crankshaft or the bearings and bearing seat.

Optionally available in 2 possible ratios:
2.86 = standard (plug and play)
2.68 = Longer for customised engines (minimal adjustment necessary)

Compatibility:
Can be driven with all standard clutch baskets (also original)

Suitable for:
Yamaha Banshee all years of construction
Yamaha RD 350 31K, YPVS, 1WW, 1WX

Returns:
Unfortunately, parts that are ordered on a customer-specific basis cannot be returned. The parts come directly from the USA and are ordered separately for each customer.
Cancellation is only possible within the first 24 hours. After we have ordered the parts in the USA, cancellations are no longer possible.
from 799,00 EUR
incl. 19% tax excl. Shipping costs
TZ_350_Bearing
TOP
Cylindrical roller bearing TZ Style Bearing reinforced version C3 Bearing clearance with ring groove Crankshaft bearing (25x62x17mm) 93390-00012-00
Cylindrical roller bearing TZ Style Bearing reinforced version C3 bearing clearance with ring groove Crankshaft bearing (25x62x17mm)

Includes:
1x cylindrical roller bearing
1x cylindrical roller bearing inner part

Info:
This bearing is a must-have for all those who drive a larger engine or who are travelling on the race track. It relieves the bearing seat in the crankcase and lasts longer.
If possible, the bearing should only be used with a straight-toothed primary drive.

Compatibility:
Can be used with all standard crankshafts. Whether original or +4, +7, +10 etc.
Remove the old bearing and fit the new one.

Installation position:
Right (directly on the primary drive)

Suitable for:
Yamaha Banshee all years of construction
Yamaha RD 350 31K, YPVS, 1WW, 1WX
39,00 EUR
39,00 EUR per Pcs
incl. 19% tax excl. Shipping costs
Mikuni_TM35-1_back
TOP
Mikuni Carburettor TM35-1 Yamaha Banshee RD350 TZR Aprilia RS Suzuki RGV Vespa etc.
Mikuni carburettor TM35-1

The carburettor is also often used for conversion on other mopeds and scooters, such as Vespa, Aprilia RS, Suzuki RGV, Yamaha TZR etc.

The offer includes:
1x carburettor TM35-1

The offer also includes:
Jetting of your choice (standard jetting if not specified)
A different jet needle (if required) (standard if no details are given).

Technical details:

Main jet = 350
Idle jet = 20
Nozzle needle = 6EN11-53-3

Outer diameter front = 40mm
Outer diameter rear = 62mm
Total length = 74mm

Important notes:
Other intake manifolds are required! No plug & play!

Conversion must be approved by the TÜV

Suitable for:
All two-stroke vehicles where it fits or can be made to fit! :)
from 229,00 EUR
incl. 19% tax excl. Shipping costs
Vitos Performance Hemi Head Silver
Vito's Performance MODQUAD HEMI HEAD cylinder head Small Bore or Big Bore Coolhead for Yamaha Banshee Silver Athena 392 421 465

Vito's Performance HEMI Head Cylinder Head Small Bore or Big Bore Coolhead for Yamaha Banshee

Scope of delivery:

1x Vito's Performance cylinder head Hemi Head (Coolhead)
1x O-ring gasket set
1x cylinder head bolts incl. gaskets

Info:

The cylinder head is beautifully finished. The edges are rounded and it has a significantly better cooling performance compared to the original Banshee cylinder head. The sheet metal head gasket is omitted with this cylinder head. It is sealed with the supplied gasket set.

The cylinder head can be used with all commercially available small bore domes (64-66mm) or with big bore domes (68mm). Of course, our domes for the Athena 421 conversion also fit.

Suitable for:

Yamaha Banshee (all model years)
Yamaha Banshee with Athena 392 or 421 cylinder
Yamaha Banshee with Cheetah cylinder
Yamaha RD 350 (only with Athena 392/421)

329,00 EUR
329,00 EUR per Pcs
incl. 19% tax excl. Shipping costs
Clutch Basket Cushions
Clutch Clutch basket shock absorber kit Yamaha Banshee and RD 350 Chariot, Hinson, Vitos, OEM etc.

Shock absorber kit for Yamaha Banshee and RD 350

Includes:
8x shock absorber (rubber)

Description:
For repairing the clutch basket when the shock absorbers are worn out.
Can be used as a replacement part for all commercially available clutch baskets.

Suitable for:
Yamaha Banshee (all model years)
Yamaha RD 350 31k, 1WW, 1WX, YPVS

49,00 EUR
49,00 EUR per Pcs
incl. 19% tax excl. Shipping costs
90280-05033-00
TOP
Insert key +4 degree crankshaft offset key Ignition key Pole wheel Yamaha Banshee RD 350 90280-05033-00

Insert key crankshaft sprocket Yamaha Banshee RD 350 +4 degrees (pre-cogging)

Includes:
1x safety wedge incl. ignition adjustment +4 degrees

Info:
Secures the pole wheel on the crankshaft against twisting
Sets the ignition timing 4 degrees further forward.

Tuning part - Not approved for road use!

Suitable for:
Suitable for all Yamaha Banshee model years
Suitable for all RD 350 models 31k, YPVS, 1WW, 1WX

35,00 EUR
35,00 EUR per Pcs
incl. 19% tax excl. Shipping costs
Cheetah_421
Cylinder kit Cheetah Cub Serval 421 Plug & Play Yamaha Banshee / RD 350 Cylinder set pistons, gaskets, water plugs etc.
This is the legendary CHEETAH CUB kit for YOUR Banshee

The offer is valid for a complete Cheetah cylinder kit 421cc incl. all necessary components.


Scope of delivery:
1x Cheetah cylinder 421cc as Cub
2x Wiseco pistons 67.94mm
1x base gasket
2x stud bolt extensions
As well as water plugs and 2 small nuts for between the cylinders

Crankshaft sold separately!
Cylinder head available separately!

For further parts or information, please contact us.
2.599,00 EUR
2.599,00 EUR per Pcs
incl. 19% tax excl. Shipping costs
Domes_Yamaha_Banshee_350
-10%
Combustion chamber insert domes 22cc for Coolhead or Athena cylinder head for original 13° pistons

Combustion chamber insert domes 22cc for Coolhead or Athena cylinder head for original 13° pistons

Scope of delivery:
1 piece = 2x domes / combustion chamber inserts

Note:
Up to piston size 65.5mm

Instructions for use:
Not authorised for road use!

Only 72,00 EUR
72,00 EUR per Set
incl. 19% tax excl. Shipping costs
29L-16356-00-00
TOP
PR clutch bearing pancake bearing Yamaha Banshee and RD 350 OEM cover original length push rod 29L-16356-00-00
PR clutch bearing for the Yamaha Banshee and RD 350

Scope of delivery:
1x PR clutch bearing (pressure pin) pre-assembled

Note:
A new clutch cover gasket is required for replacement.

Suitable for:
Yamaha Banshee
Yamaha RD 350 31K, 1WW, 1WX, YPVS
39,00 EUR
39,00 EUR per Pcs
incl. 19% tax excl. Shipping costs
29L-16357-00-00
TOP
Push rod clutch Pos. 23 Push rod 29L-16357-00-00 Yamaha Banshee RD 350
Push rod clutch item 23 Push rod 29L-16357-00-00 Yamaha Banshee RD 350

Contains:
1x push rod pos. 23

Info:
Push rod for clutch actuation

Suitable for all Yamaha Banshee model years
Suitable for all RD 350 models 31k, YPVS, 1WW, 1WX
21,50 EUR
21,50 EUR per Pcs
incl. 19% tax excl. Shipping costs
65 to 80 (from a total of 135)
Motor parts for Yamaha Banshee
