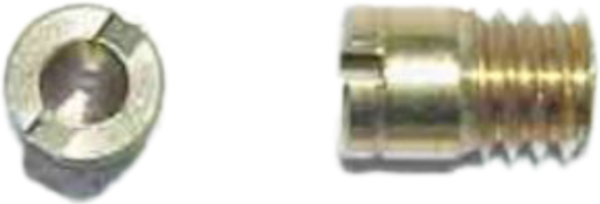

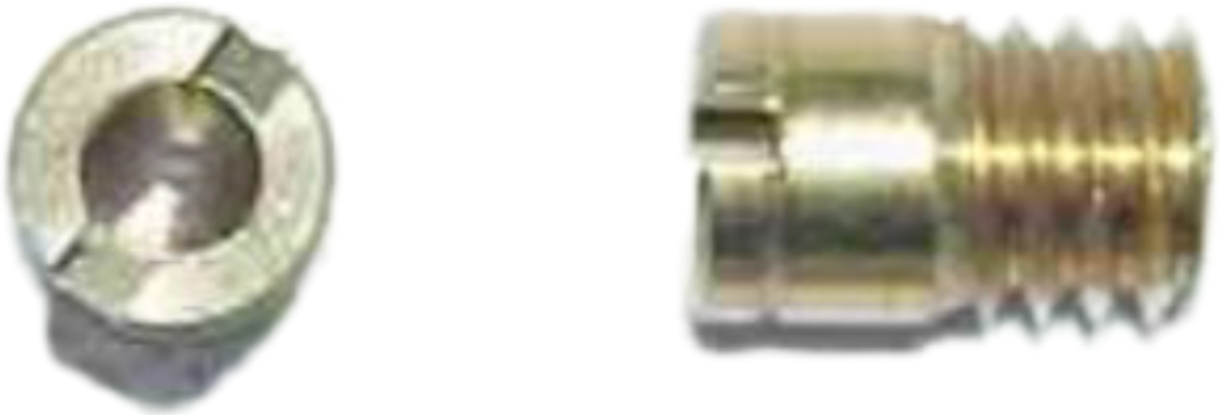

Mikuni carburettor Powerjet jet N100606-size for Mikuni carburettor TM27-8006 / TM30-6

Mikuni carburettor TM30-6

The carburettors are often used for a conversion of the Yamaha Banshee or RD350. They fit tightly into the original intake rubber.

The carburettors have an additional Powerjet jet so that the mixture can be adjusted even better.

The offer includes:
2x carburettor TM30-6
(jetting of your choice (standard jetting if not specified))

Technical data:
Main Jet = 195
Idle Jet = 40
Needle = 5EL68-3
Power Jet = 80

Notes:
To make the carburettor fit more snugly, we recommend fitting a spacer between the diaphragm and cylinder. Otherwise it will be a little tight on the engine housing.

Conversion must be approved by the TÜV

Optional oil connection:
Also available with oil connection! (The carburettors then have an oil connection with integrated non-return valve)

Suitable for:
Yamaha Banshee
Yamaha RD 350 31k, YPVS, 1WW, 1WX, 4L0, 4L1 etc.

Silicone hose connector for connecting a Mikuni TM30 carburettor to the original air filter box

Includes:
2x silicone hose reducer

Dimensions:
51mm carburettor connection
62mm air filter connection

Suitable for:
Yamaha Banshee all years
